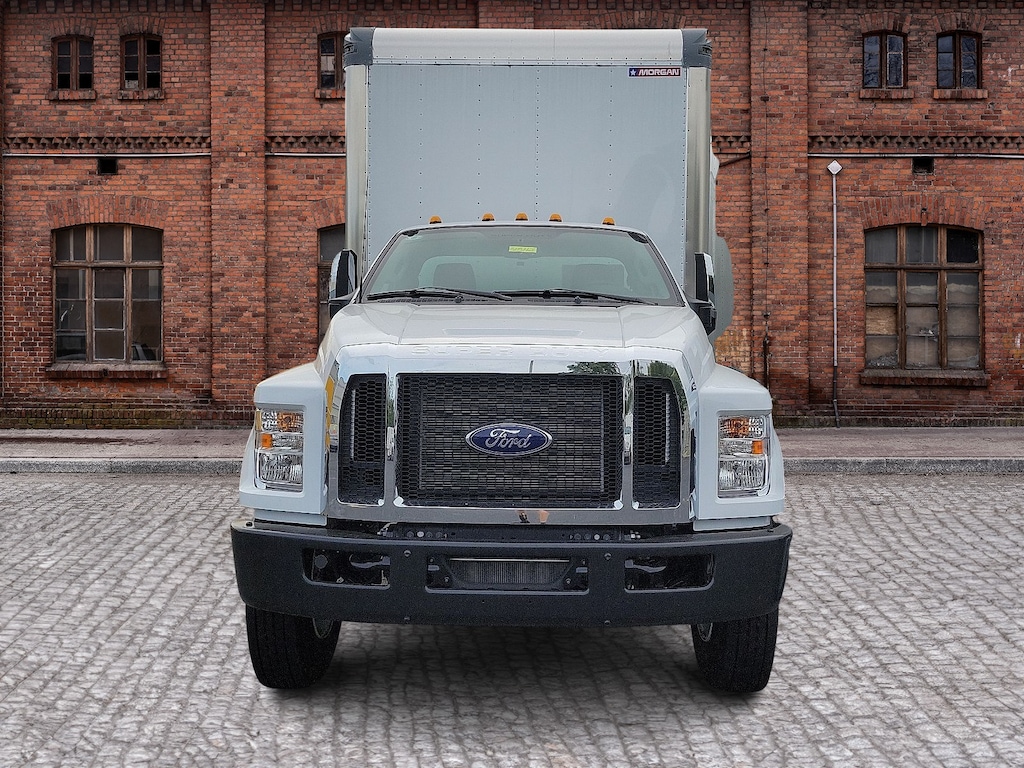

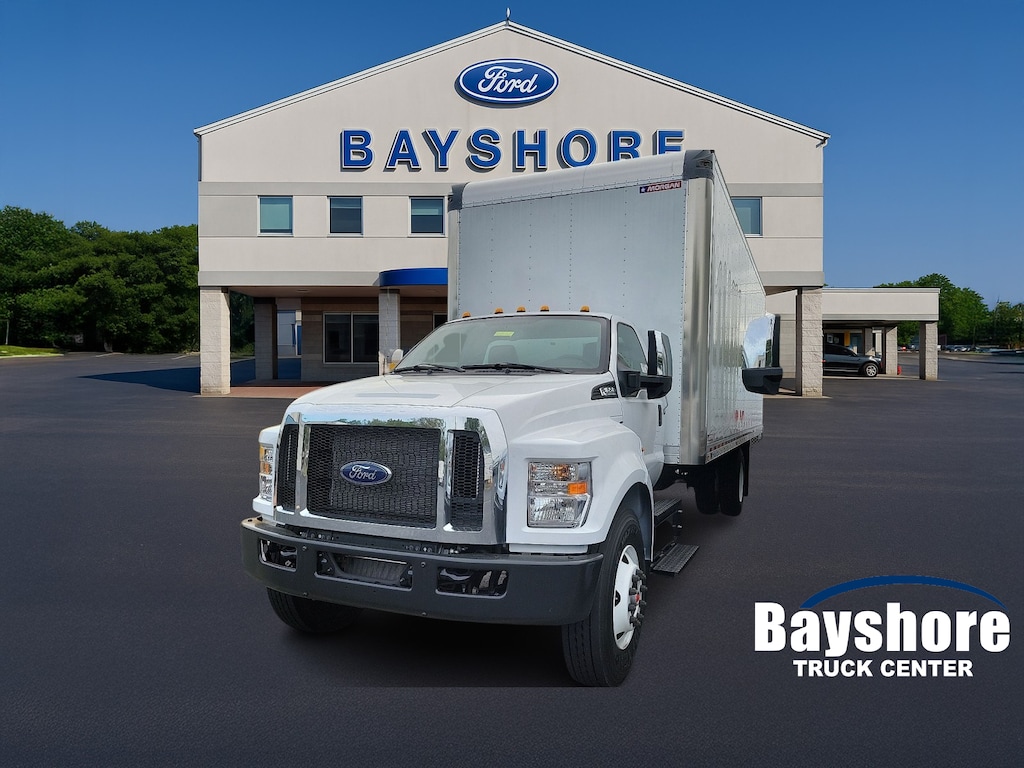

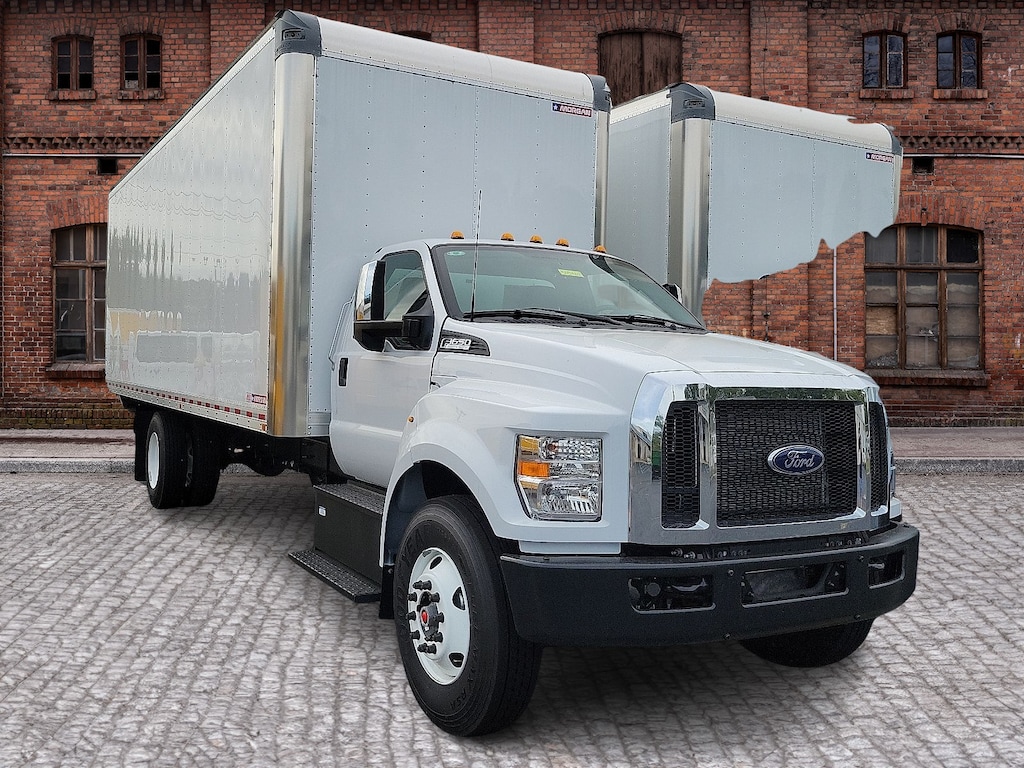

Body Type: Box Truck
Length: 26 Foot
Body Line: Gold Star
Body Model: GVSD10326102
Dimensions
- Body Material: Aluminum
- Body Width: 102″
- Body Length: 26′
- Interior Height: 103″
- Door Opening: 97.25″ H x 94″ W
- Floor Thickness: 1-1/8″
Construction & Materials
- Floor: 1-1/8″ laminated hardwood, ship-lapped and pre-undercoated, fastened with two countersunk screws per board in staggered pattern
- Roof: .032″ one-piece aluminum sheet with anti-snag roof bows on 24″ centers; crowned design prevents pooling
- Side Walls: .040″ pre-painted white aluminum skins with extruded aluminum top/bottom rails and galvanized steel Z-posts on 16″ centers
- Rear Door: Overhead roll-up door
- Rear Frame: Galvannealed steel painted Imron white, includes built-in header, clearance light protector, rain deflector, and grab handles (curbside and roadside)
- Threshold: Galvanized steel angle, flush to rear
Lighting
- Interior: (1) dome light with indicator switch mounted on cab dash
- Exterior: Sealed LED clearance lights, per FMVSS-108 (front corner caps, side top rails, five across rear header)
Additional Features
- Bumper: 5″ structural bumper with pooched surface and closure plate
- Mud Flaps: Morgan 24″ x 36″ black
- Mounting: Full mount with U-bolts
- Front End: Aerodynamic aluminum radii with Morgan’s patented Poly-Tuff corner caps
Gold Star Features
- Subframe: 3″ I-beam crossmembers on 12″ centers with 4″ longrails; Mylar tape between steel subframe and aluminum rails to prevent corrosion
- Skins: .040″ pre-painted white aluminum
- Roof Structure: Crowned to prevent water and ice pooling
